HIGHS TOGGLE SWITCH W/ RUBBER CAP M6

0 %
Stars
(0 hodnocení)

HIGHSIDER smart toggle switch with rubber cap (M6) For operating and controlling all instruments. The buttons are of high quality, very robust and protected against vibrations. Dimensions: Width: 13 mm Depth: 8 mm Total length: 36 mm Installation length 17 mm Installation diameter 6 mm Nut M6: 8 mm outside, 5.5 mm inside Connections: ON = input OFF = output Technical specifications: Voltage: 125V AC /250V AC Max. Current: 6A / 1.5A Scope of delivery: 1 piece

Popis

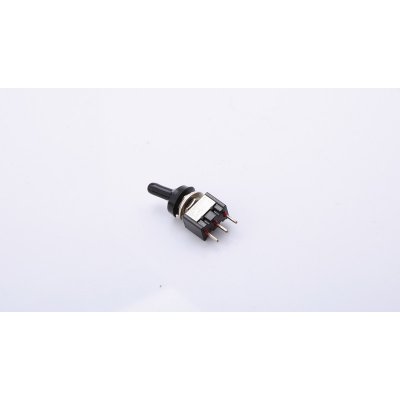

HIGHSIDER smart toggle switch with rubber cap (M6)
For operating and controlling all instruments. The buttons are of high quality, very robust and protected against vibrations.

Dimensions:
Width: 13 mm
Depth: 8 mm
Total length: 36 mm
Installation length 17 mm
Installation diameter 6 mm
Nut M6: 8 mm outside, 5.5 mm inside

Connections:
ON = input
OFF = output

Technical specifications:
Voltage: 125V AC /250V AC
Max. Current: 6A / 1.5A

Scope of delivery: 1 piece
